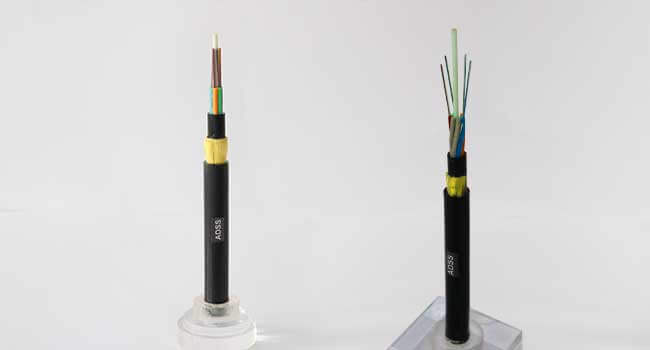

ADSS Cables are a kind of non-metallic optical fiber cables suspended directly between two points without any supporting elements. ADSS is an alternative to OPGW and OPAC with lower installation cost. The cables are designed to be strong enough to allow lengths of up to 700 metres to be installed between support towers. ADSS cable is designed to be lightweight and small in diameter to reduce the load on tower structures.
Ask For a Quote
The cables are designed to be strong enough to allow lengths of up to 700 metres to be installed between support towers. ADSS cable is designed to be lightweight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice. In the design of the cable, the internal glass optical fibers are supported with little or no strain, to maintain low optical loss throughout the life of the cable. The cable is jacketed to prevent moisture from degrading the fibers. The jacket also protects the polymer strength elements from the effect of solar ultraviolet light.

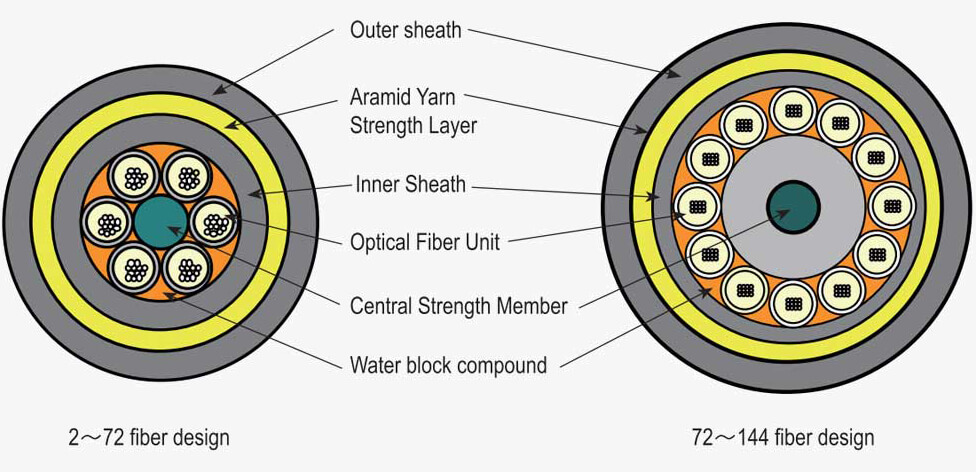

ADSS Cable is loose tube Stranded, Quoted Fibers are positioned in the Loose Tube, Tubes are filled with Water - Resistance Compound. The tubes are stranded around a FRP as a non-metallic central strength member into a compact and circular cable core. And then Cable is Covered with Ripcord on inner Sheath. HDPE is used on Outer Sheath
Get a Quote
No metallic components – can install in supply space and grounding is not required. Minimal long term maintenance. Lower Hardware Cost. Small Cable Diameter. Live Powerline Installation. Suitable for Bad Weather.
Suitable for use on distribution and high voltage transmission lines.Requires no messenger wireRequires no messenger wireIEEE 1222 and I8C60794 -I &. 60794-4 EDI or equivalent.

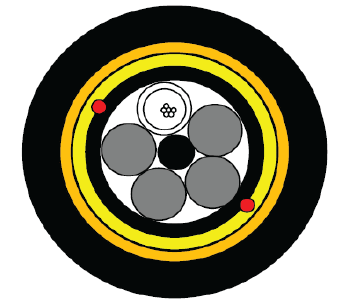

| Cable Type Specification | Name | Number | Material Dia |
|---|---|---|---|
| ADSS PE 6B1 | |||
| FRP Wire | 1 | 1.6 MM | |
| Fibers of Cable | 6 | 2.0 / 1.4 MM | |
| Fillers | 4 | ||
| MDPE Inner Sheath thickness | 0.8 MM | ||
| HDPE Outer Sheath thickness | 1.5 MM | ||

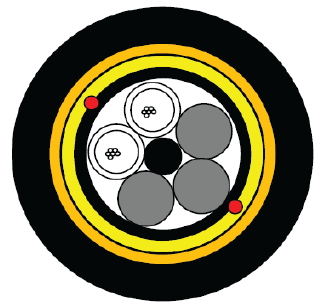

| Cable Type Specification | Name | Type | Material Dia |
|---|---|---|---|
| ADSS PE 12B1 | |||
| FRP Wire | 1 | 1.6 MM | |
| Fibers of Cable | 12 | 2.0 / 1.4 MM | |
| Fillers | 3 | ||
| MDPE Inner Sheath thickness | 0.8 MM | ||
| HDPE Outer Sheath thickness | 1.5 MM | ||
| SR. NO. | Item | Unit | Technical Data Value |
|---|---|---|---|
| 1 | Type | / | |
| 2 | Fiber Type | G.652 | |
| 3 | Optic Fiber | 6 | |
| 4 | Diameter | MM | 10.3 |
| 5 | Weight Per km Length | Kg / Km | 88 |
| 6 | RTS | 8.62 KN |
| SR. NO. | Item | Unit | Technical Data Value |
|---|---|---|---|
| 1 | Type | / | GYFTS - 48B1 |
| 2 | Fiber Type | G.652 | |
| 3 | Optic Fiber | 12 | |
| 4 | Diameter | MM | 10.3 |
| 5 | Weight Per km Length | Kg / Km | 88 |
| 6 | RTS | 8.62 KN |
